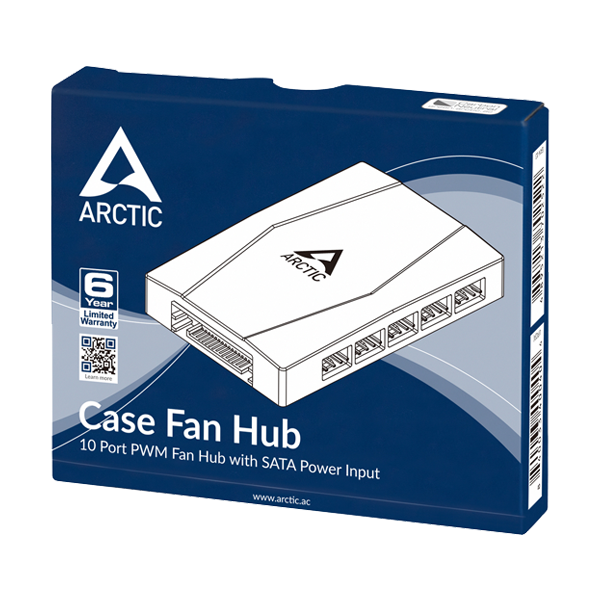

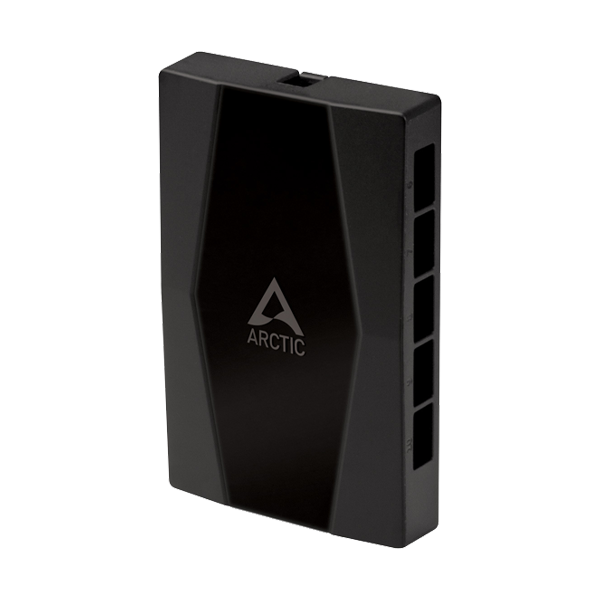

Simplify your cooling setup with the Arctic 10 Port PWM Case Fan Hub With SATA Power, offering centralized cable management with adhesive pads and magnetic strips for flexible placement. This hub connects up to nine additional fans with synchronized PWM control and is powered via SATA for reliable performance. Enhance your system’s ventilation effortlessly, even with limited fan headers.
Centralised Cable Management
The Case Fan Hub comes equipped with adhesive pads and magnetic strips, which lets you place it anywhere in the case. It connects to your motherboard with only one cable is powered via SATA. This way, you can do without any additional cables and position it freely in the hidden part of the case.
Synchronous Fan Control
Your set PWM signal is passed on synchronously to all fans connected to the Case Fan Hub. The rpm of the first fan slot will be read out and returned to your system.
Expand Your Ventilation
Even if you don’t have enough fan headers on your mainboard, the case fan hub expands your system by nine more case fan slots.
External Power Supply
The fans are powered directly from your power supply via SATA Power. As a result, there is no voltage loss at the fan speed, and smooth, smooth operation is made possible.
|
Brand |
Arctic |
|
Color |
Black |
|
Model |
ACFAN00175A |
|
Dimensions |
86.3 mm (L) x 55.6 mm (W) x 14.3 (H) mm |
|
Weight |
50 g |
|
Input Current |
up to 4,5 A |
|
Output Current |
up to 1 A per Port |
|
Output |
10 x 4-Pin PWM Socket |
|
Input |
SATA Power + 4-Pin Fan Header |
|
Box Dimensions |
72 (L) x 16 (W) x 89 (H) mm |
|
Warranty |
1 Year |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
